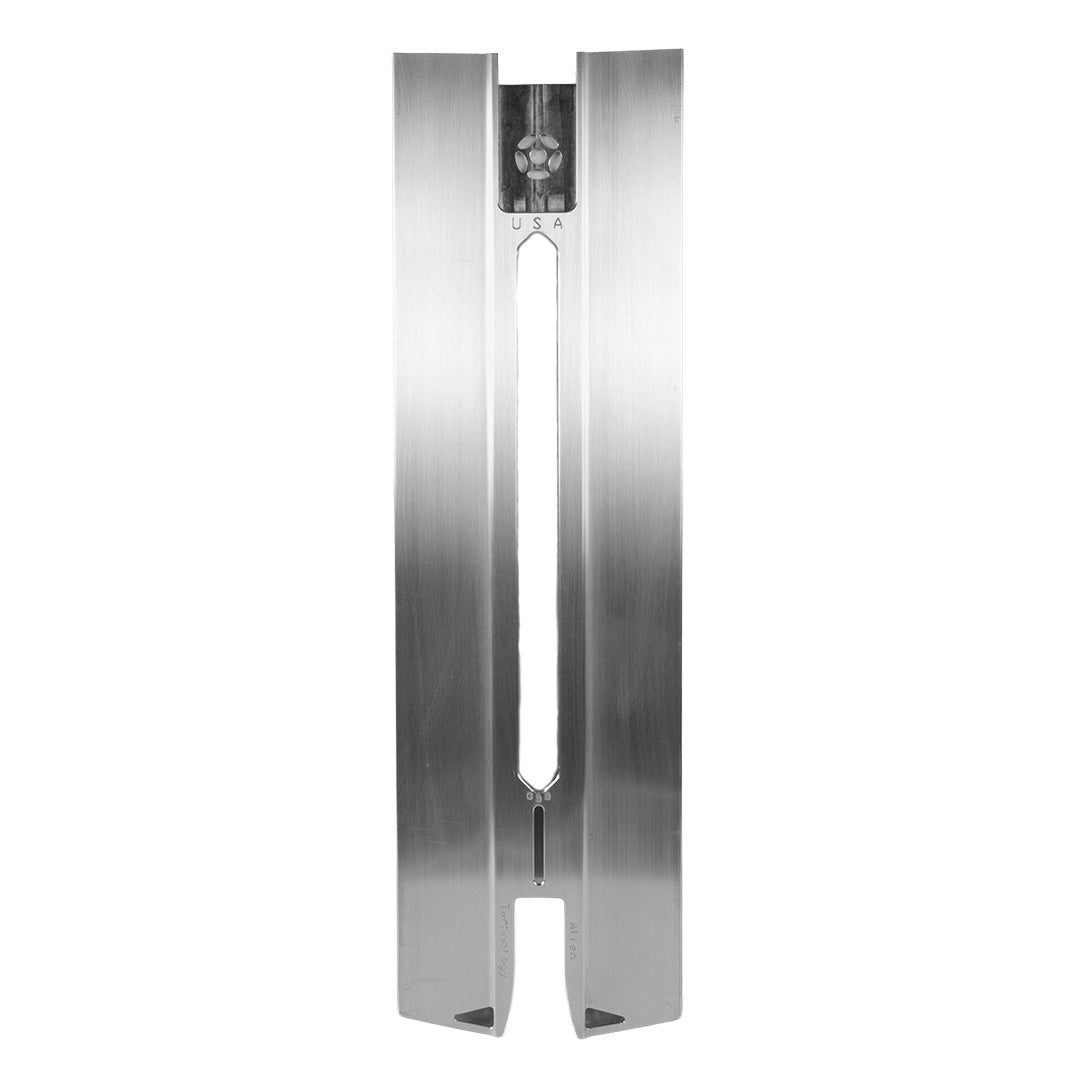

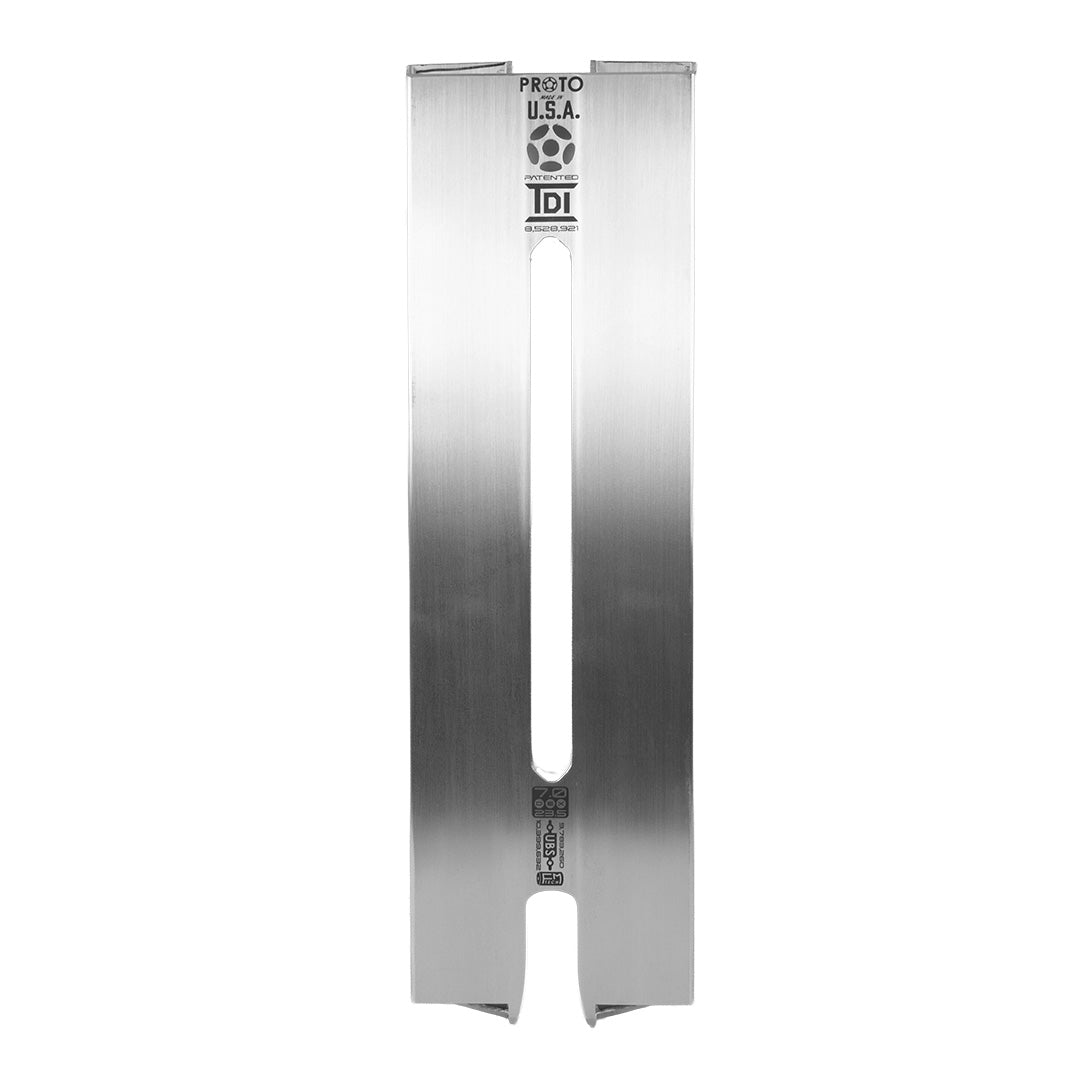

PROTO SOL-Lite TDI DEX 7" X 23.5"

Revolutionary Design

US Patent #8,528,921

Deck Size

– 7.0″W x 23.50″L

MADE IN THE USA

*Deck ends SOLD SEPERATELY

THIS PART IS 1 OF 4 PARTS NECESSARY FOR A COMPLETE PROTO DECK

The PROTO SOL-Lite is the pinnacle of the TDI fleet and one of the largest freestyle scooter deck ever produced; 100% In-House at the PROTO Factory in Vista, California in The United States of America.

SOL-Lite SPECIFICATIONS
Width: 7.0″
Lengths: 21.5″, 22.0″, 22.5″, 23.0″, 23.5″ & 24.0″
Finish: Raw Brushed

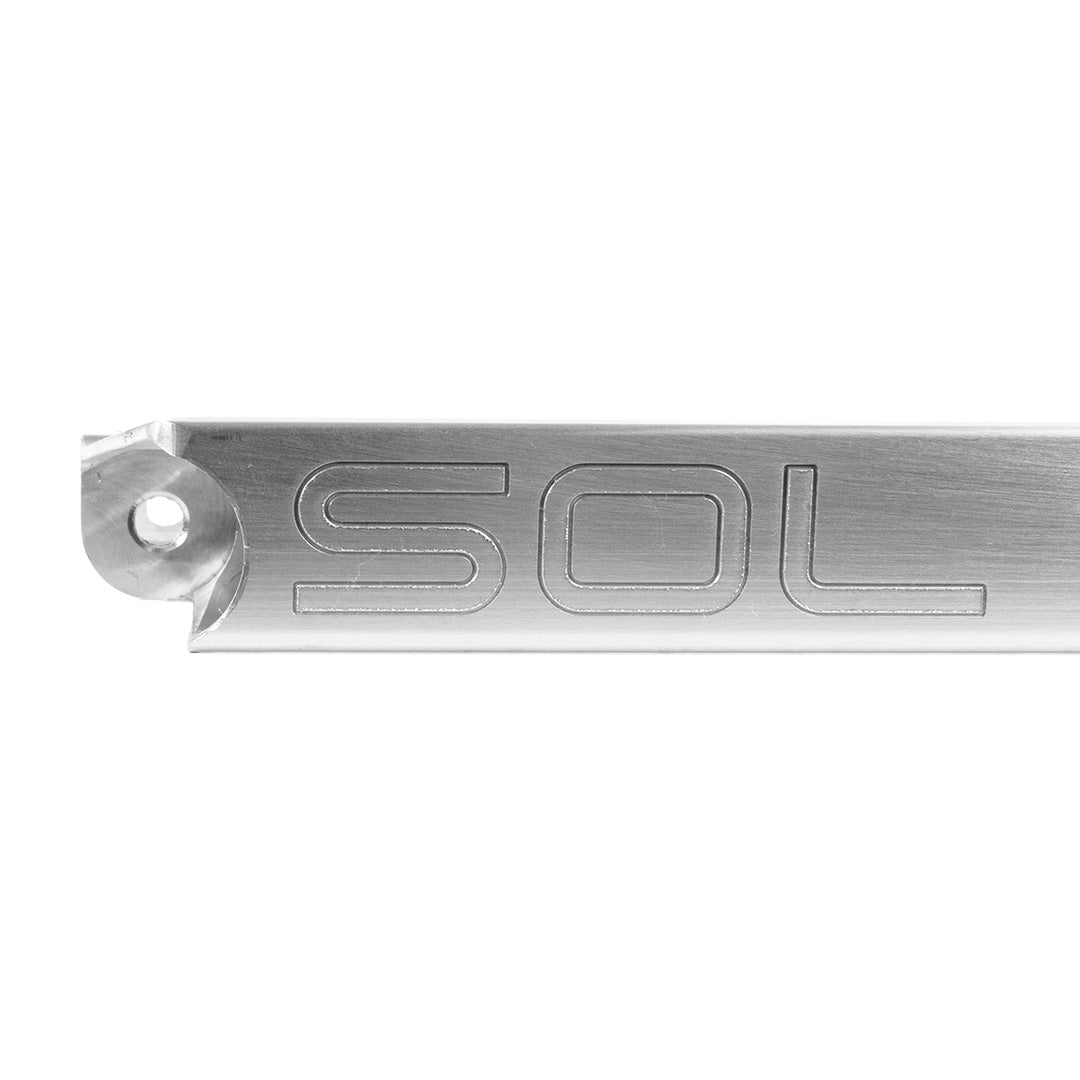

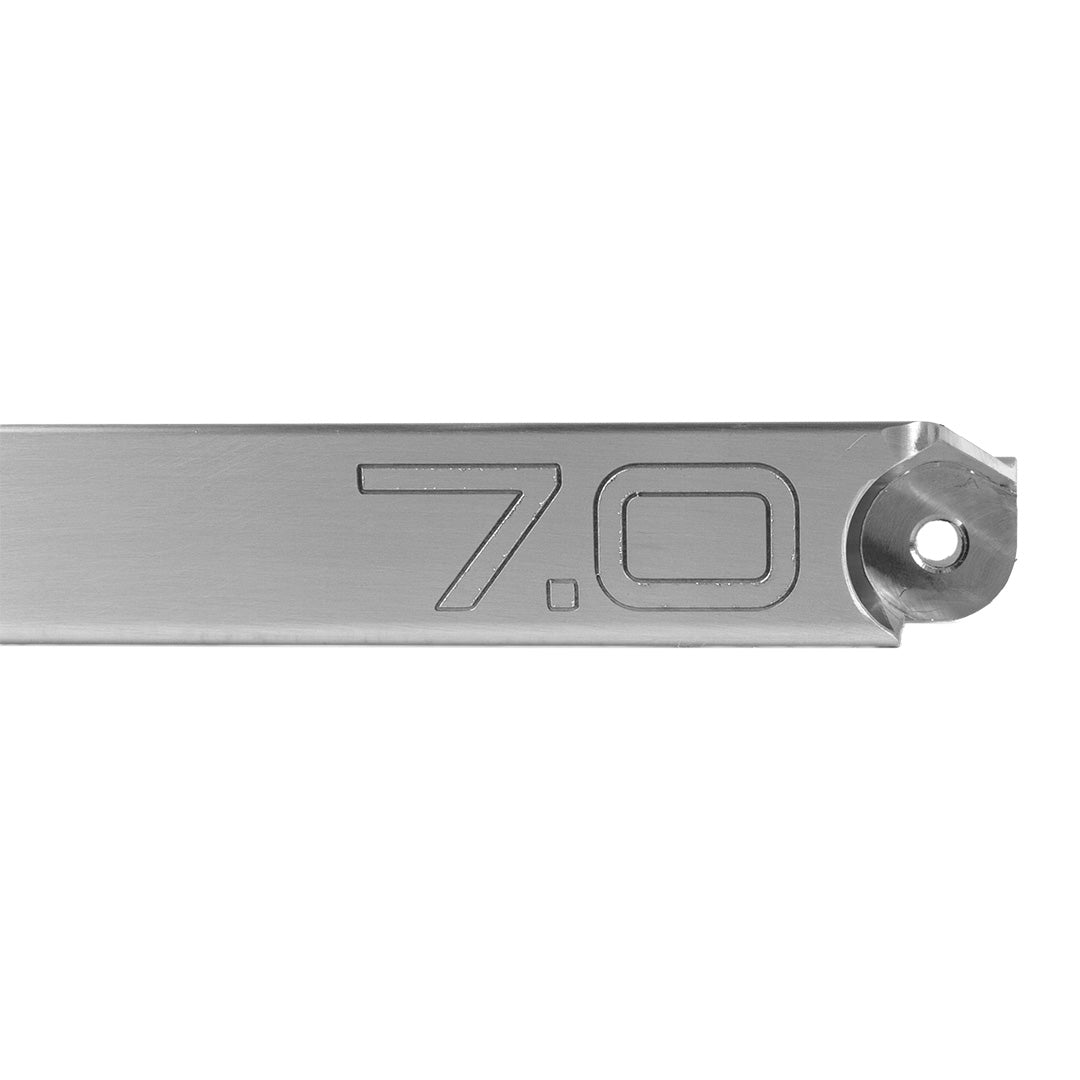

Marking: Black Laser & CNC Engraving

SOL-Lite FEATURES
-Flush-Mount Drop-Outs; FMtech™
-Wider Deck-Ends™
-Deeper Drop-Top™ Ridges

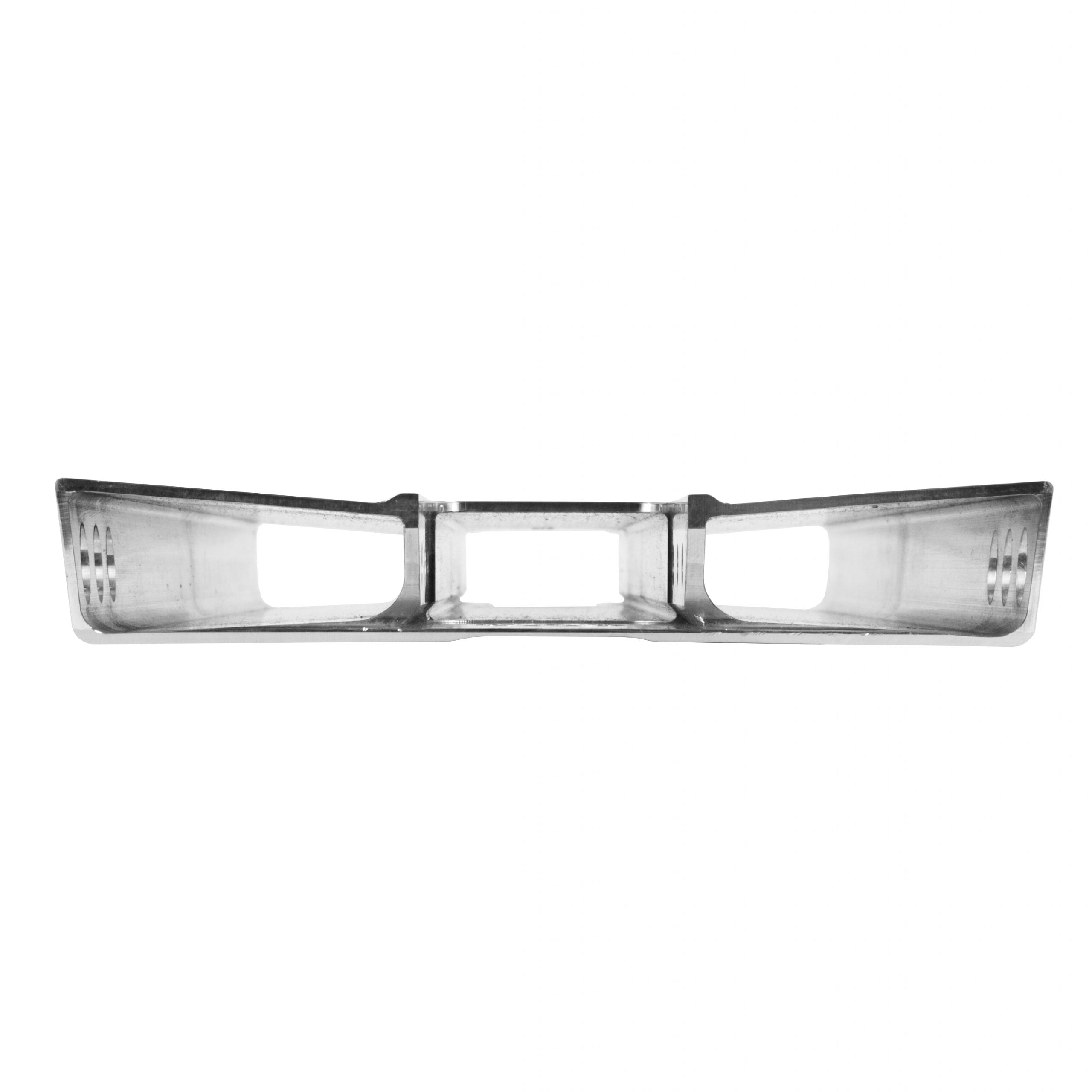

-Reinforced Lower Extrusion Profile to support extra width

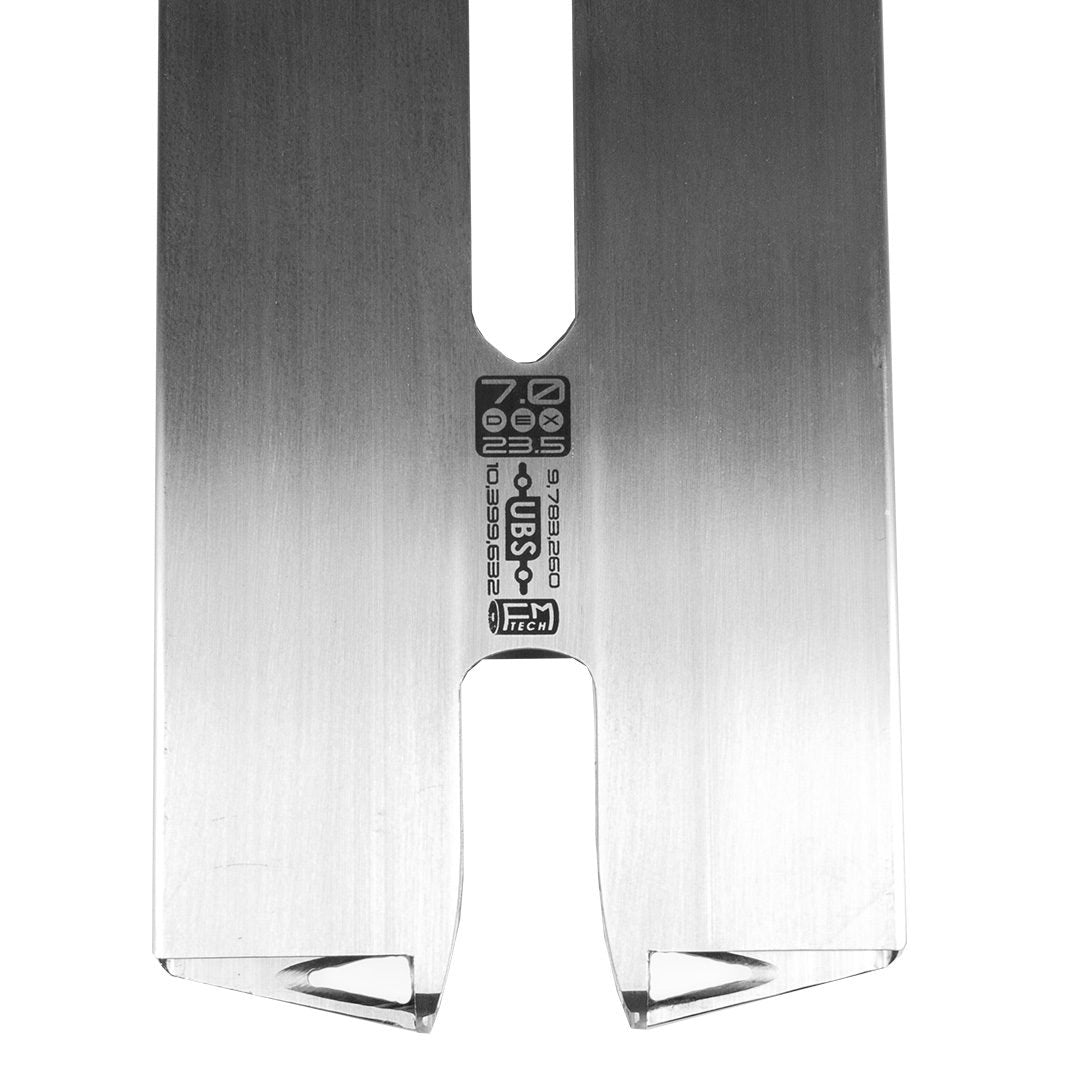

-Weight Reducing Deck Cut-Outs (top and bottom)
-Weight Reducing Deck-Ends™ Cut-Outs
-Manufactured In-House: San Diego, California, USA

SOL-Lite COMPATIBILITY
Necks: ALL past, present & future TDI™ NEX
Wheel Width: 24mm & 30mm (Spacers included with Deck-Ends™)
Wheel Diameter: 130mm Maximum
Axle: 8mm included with Deck-Ends™
Brake: Center-Mount Universal Braking System; UBS™

ATTENTION: [DECK-ENDS] MUST be ridden with ALL TDI DEX or the Warranty will be voided!

#TDIbyPROTO #TDI247 #ridePROTO #MadeInUSA #PROTOsol

Technology

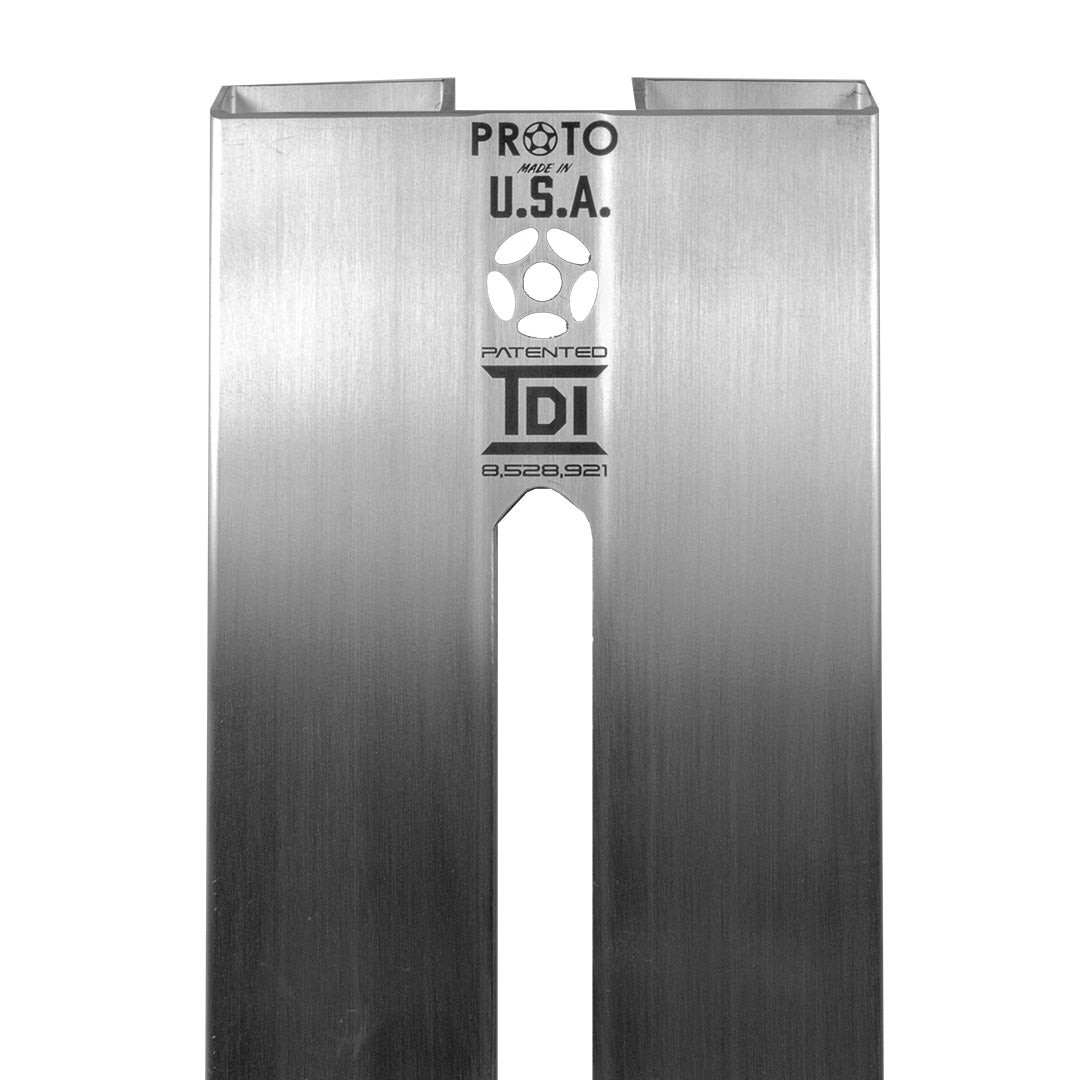

TDI (TUNGLOK DECK INTEGRATION) – US PATENT #8,528,921
TDI is a system of compatibility. This system was designed so that the deck and neck/headtube are separate components that are mated together utilizing a tongue and groove system with bolts to keep everything in place. The TDI system allows for interchangeable neck/decks allowing for maximum customization and upgrades of  a single deck or neck. When your deck wears out on a TDI system you only need to replace the deck itself instead of the entire neck/deck assembly like a one piece deck. Watch the original TDI Debut Video to learn how it works.

UBS (UNIVERSAL BRAKING SYSTEM) PATENT PENDING
The new Patent Pending PROTO Universal Braking System (UBS) is an update from the original 6-hole UBS system from 2010. The new UBS SLOT is the the world’s first fully adjustable brake mounting system, integrated into the deck itself, that allows for your brake size and weight to be minimized while still providing the flexibility for you to run any size wheel on your deck while also letting you fine tune your brake sensitivity. Nuts, washers and sockets have been eliminated with its integrated threads. Simply loosen the bolts with an Allen key, slide the brake lever to your desired position and tighten it down! UBS technology is featured on all PROTO Orion and Space decks.

FM TECH (FLUSH MOUNT TECHNOLOGY)
The PROTO Orion and Space decks are the world’s first decks to feature Flush Mount Technology. FM Tech allows you to trash your old “cone” shaped pegs which are notorious for bending axles and being incompatible with wider decks and allows you to start using straight Cylindrical Pegs and Deck-Ends which provide superior impact support all the way to your drop-outs. With Flush Mount Technology, the Peg/Deck-End Diameter is now standardized so the dropouts of the deck can perfectly contoured to fit your Pegs and Deck-Ends which allows the full width of your deck extrusion to provide an additional level of support on Peg/Deck-End impact. PROTO will be offering Pegs and Deck-Ends in a variety of materials from plastic to aluminum to steel, so your options will be virtually endless to suit any riding style or preference!
